Digital I/O Expansion Board IKD1M

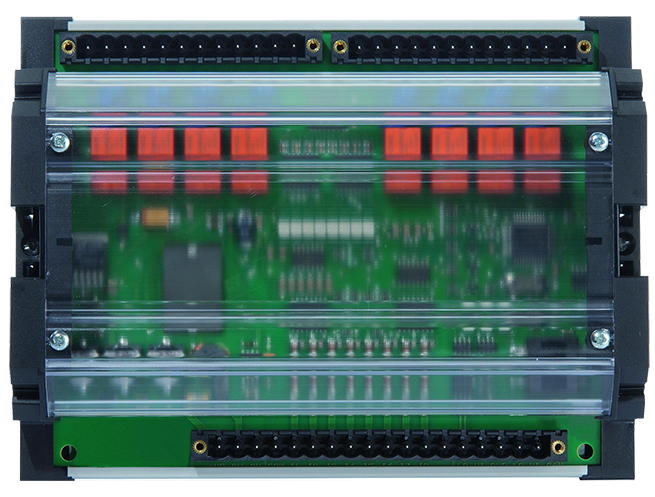

IKD1 Front

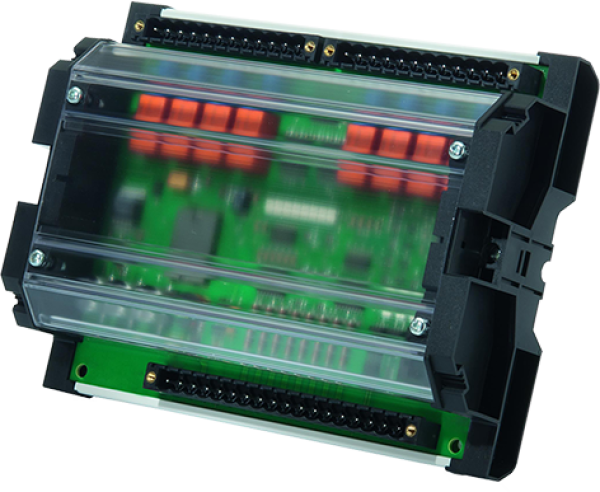

IKD1 Perspective right
Mobile Preview: IKD1 Front
Mobile Preview: IKD1 Perspective right

Digital I/O Expansion Board IKD1M

Product No.:
2RIKD1M000
Shipping time:
DISCONTINUED ARTICLE DISCONTINUED ARTICLE
418,00 EUR

plus 19% tax excl. Shipping costs

Add to wish list
Ask about product
Description

The IKD 1 can be used to expand the number of digital inputs/outputs on Kuhse controls of the KEA 3X0 series. Per extension board 8 digital inputs and 8 relay outputs are available. It is possible to connect one or more IKD 1 units to the genset controls (see table Combinable products).

The connection to the KEA 3X0 genset control is made by CAN bus. If more than one IKD 1 relay extension is connected to a KEA 3X0 genset control, the extension boards have to be addressed. For this purpose, the DPC adapter from the connection starter set KEA 320 / KEA 350 is required.


  • Mounting type: mounting plate, on mounting rail

Related Products  # IKD
KEA 320 Lite / KEA 320 RP Lite 4 pieces
KEA 320 / KEA 320 RP 4 pieces
KEA 350 P1 / KEA 350 RP P1 4 pieces
KEA 350 P2 / KEA 350 RP P2 4 pieces
Specifications
Supported controllers:
  • KEA320, KEA 320 RP, KE350 P1, 350 RP P1, 350 P2, 350 RP P2
General:
  • Power supply: 12/24 VDC (6 to 36 VDC)
  • Power consumption: max. 3 W
  • Ambient temperature: -40 to 85 °C
  • Ambient humidity: 95%, non-condensing
Discrete inputs isolated:
  • Input range 12/24 VDC (6 to 32 VDC)
  • Input resistance approx. 6.8 kΩ
Relay outputs isolated:
  • Contact material AgCdO
  • Load (GP): 2.00 Aac@250 VAC / 2.00 Adc@24 VDC / 0.36 Adc@125 VDC / 0.18 Adc@250 VDC
  • Control mode (PD): 1.00 Adc@24 VDC / 0.22 Adc@125 VDC / 0.10 Adc@250 VDC
Service interface:
  • Version: RS-232
CAN interface isolated:
  • Insulation voltage (continuously) 100 VAC.
  • Insulation test voltage (≤ 5 s) 1,000 VAC.
  • Version CAN bus
Connection:
  • Screw/plug-in terminals 2.5 mm²
Form factor/housing:
  • Mounting on DIN rail, extrusion profile Um 122, to snap-on on a DIN rail/C-profile
  • Dimensions 168 × 128 × 51 mm
  • Weight approx. 360 g
  • Protection class IP 20
Disturbance test (CE):
  • tested according to the applicable EN guidelines
Listings:
  • UL/cUL, GHOST-R
Software & CAD

CAD files and EPLAN Macro

Software
Documents
Data sheet IKD1  (691.45 KB)
